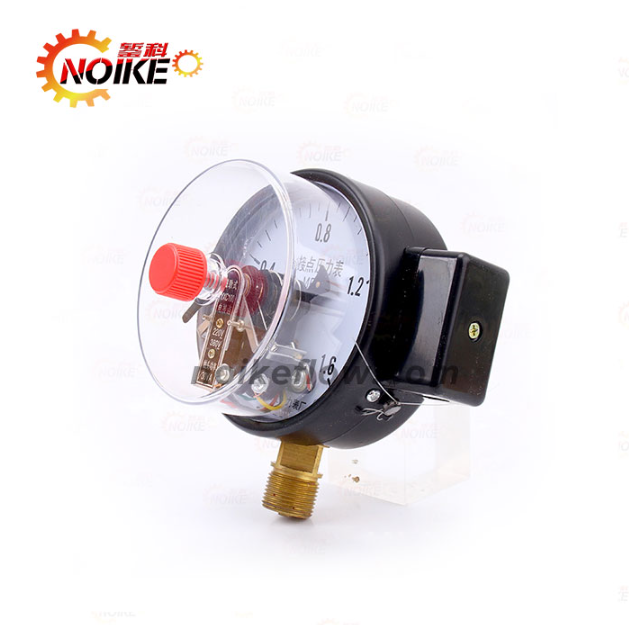

Professional English Translation of YNXC-100 Seismic-Resistant Magnetic Assisted Electrical Contact Pressure Gauge Specifications?

Structural Configuration?

Housing Material?: Nickel-plated casing (stainless steel option available)

Internal Components?: Brass movement & fittings

Dial Diameter?: 100mm

Viewing Window?: 88mm acrylic lens

Mechanical Interface?

Mounting Thread?: M20×1.5 (customizable to 1/2" or 3/8" NPT)

Electrical Characteristics?

Parameter Specification

Contact Configuration? 1 NO (Normally Open) + 1 NC (Normally Closed)

Operating Voltage? 220V/380V AC (24V DC option for PLC/VFD)

Contact Capacity? 30VA (magnetic assisted)

Max Switching Current? 1A (0.6A continuous)

Contact Action Modes?

Standard Mode?:

NO/NC contacts trigger simultaneously at preset upper/lower limits

Upper Limit Only?:

Single NO/NC contact activation at upper threshold

Lower Limit Only?:

Single NO/NC contact activation at lower threshold

Environmental Ratings?

Voltage Compatibility?: 220-380V AC/DC cross-application

Current Limits?:

Instantaneous: ≤1A

Continuous: ≤0.6A

Customization Notes?

All electrical/mechanical parameters are configurable per project requirements

Contact materials available in silver alloy or gold-plated variants
