Brand:? Shanghai Zanke Automation Co., Ltd.

Model:? NT50

Product Description?

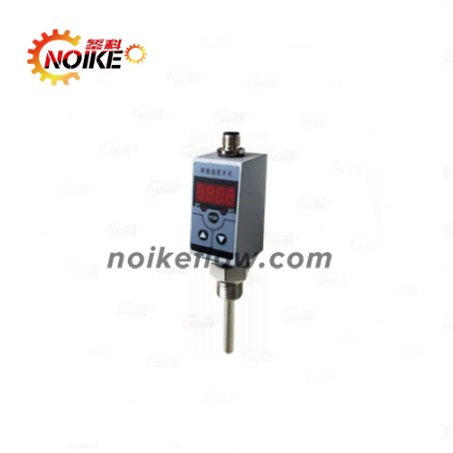

The NT50 Intelligent Temperature Controller is an all-in-one digital temperature measurement, display, output, and control device. Featuring an electronic design, it integrates a front-end temperature sensor and high-precision A/D conversion for accurate signal processing. The controller supports dual-channel switch outputs and offers flexible operation with user-friendly calibration.

Applications?

Widely used in industries such as:

Water treatment (hydropower, tap water)

Petroleum, chemical, and mechanical engineering

Temperature monitoring and control of process media

Key Features?

4-digit LED display? for real-time temperature with zero reading error.

Dual control points? with adjustable high/low temperature alarms.

Robust outputs?: Two switch outputs (1.2A load capacity) + optional analog output.

High precision?:

Sensor accuracy: ±0.1% FS

Control accuracy: 0.2% or 0.5%

Fast response?: Minimal hysteresis and rapid reaction to temperature changes.

Durability?: Switch lifespan >1 million cycles.

Technical Parameters?

Parameter Specification

Control Range -50°C to 150°C

Stability ≤±0.2%/year

Display Range -199 to 9999

Power Consumption <1W

Output Mode PNP (24V, 1.2A max)

Environmental Temp -20°C to 70°C

Media Temp -50°C to 150°C

Connection M12 industrial connector

Optional Configurations?

Threaded installation options available.

Customizable output modes (e.g., analog signal).
