Today, we will discuss the ?CH-LC type ink oval gear flow meter?, covering its ?introduction, applications, technical parameters, features, and working principles?.

Product Overview?

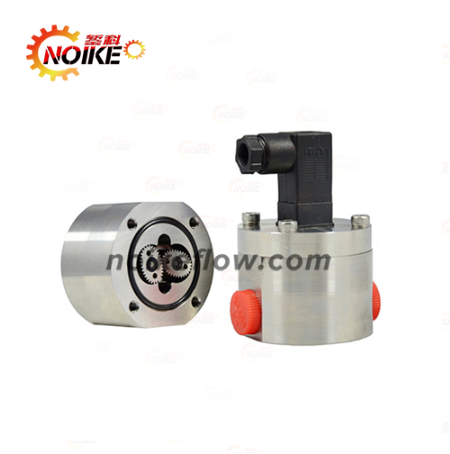

The ?LC series lightweight oval gear flow meter? features innovative design and rational structure. It is characterized by ?lightweight construction and high precision?, making it suitable for flow measurement in industries such as:

Petroleum

Chemical

Pharmaceutical and healthcare

Measurable Liquids Include?:

Chemical reagents, sealants, toluene, adhesives, cleaning agents, lubricants, electrolytes, ethylene, additives, syrups, acrylamide compounds, etc.

Primary Applications?:

Hydraulic systems

Lubrication industry

Paint industry (low-flow fluid measurement)

Key Features?

High measurement accuracy?, wide flow range, excellent repeatability

Smooth rotation of helical rotors with minimal vibration and long service life

Insensitive to viscosity changes?, ideal for high-viscosity liquids

Compact structure, small dimensions, lightweight

Easy installation (?no upstream straight-pipe requirement?)

Technical Specifications?

Materials & Pressure Rating?:

Operating pressure: 1.0 MPa / 1.6 MPa

Accuracy Class?: 0.5級 (Grade 0.5), 0.2級 (Grade 0.2)

Standard medium temperature: -10°C to +60°C

Explosion-Proof Rating?: Exia II CT5 (for remote display in hazardous areas)

Temperature Range?:

Standard: -20°C to 100°C

High-Temperature Adaptation?: Up to 200°C (with heat dissipation tube)

Maximum flow rate reduced to 90% of original; minimum flow rate increased to 120% of original.

Working Principle?

Liquid flows through the meter, creating a pressure differential between inlet and outlet. The ?oval gears rotate continuously on the shaft?, trapping liquid in inter-tooth spaces and discharging it with each rotation. The ?number of rotations is proportional to flow volume?, enabling measurement via gear rotation counting.

Compatible Fluids?

Industrial?: Water, adhesives, chemicals, oils, dyes, lubricants, petrochemicals, inks, hydraulic oils, sealants, etc.

Food & Pharma?: Corn oil, coconut oil, glycerin, syrups, edible oils, pharmaceuticals.

Specialty Fluids?: Resins, solvents, liquid nitrogen, cryogenic fluids, asphalt.

Applications?

Resin/adhesive measurement

Hydraulic oil/lubricant measurement

Fuel oil monitoring

Ink/asphalt quantification

Cryogenic/solvent measurement

Edible oil/food filling systems

Chemical/corrosion-resistant fluid measurement

Fluid quantitative control systems?

Note?: For further technical inquiries, please contact our support team.
