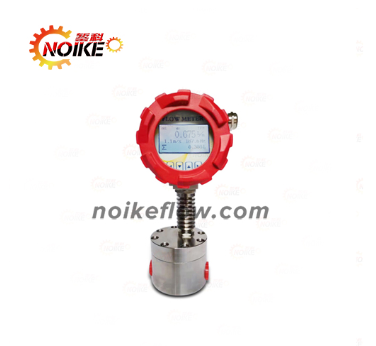

Product Introduction: Oval Gear Flow Meter (English Translation for Promotion)?

The oval gear flow meter is a type of positive displacement flow meter. Designed and manufactured to meet the specific characteristics of measured liquids and operational requirements, it is suitable for measuring various liquid food products, including:

Alcoholic beverages (e.g., wine, beer, spirits)

Dairy products (e.g., milk, liquid dairy, cream)

Edible oils (e.g., animal/vegetable fats, cooking oils)

Beverages, liquid condiments, syrups, and more.

Key Features:?

Hygienic & Safe?: Constructed from stainless steel, compliant with food sanitation standards.

High Accuracy?: Available in 0.2% and 0.5% precision grades.

Viscosity Adaptability?: Performs optimally with high-viscosity fluids; measurement accuracy improves as viscosity increases.

Robust Design?: Simple, durable structure with reliable operation.

Easy Installation?: No straight-pipe requirements upstream/downstream, even near valves or pipe fittings.

Leakage Resistance?: Minimal leakage error due to tight gear clearance.

Applications?:

Widely used in petroleum, chemical, pharmaceutical, transportation, and food industries for liquid flow measurement. Also employed in marine fuel monitoring.

Structure & Principle?:

Comprises a housing, counter, oval gears, and couplings (magnetic or axial). The gears rotate within a crescent-shaped chamber, driven by differential pressure, to measure liquid volume. Each rotation corresponds to a fixed displacement, with total flow calculated from gear rotations.

Limitations?:

Unsuitable for fluids with solid particles (risk of gear jamming).

Gas bubbles in the liquid may cause measurement errors.

Note?: A filter must be installed upstream to prevent debris damage.
