Principle Characteristics

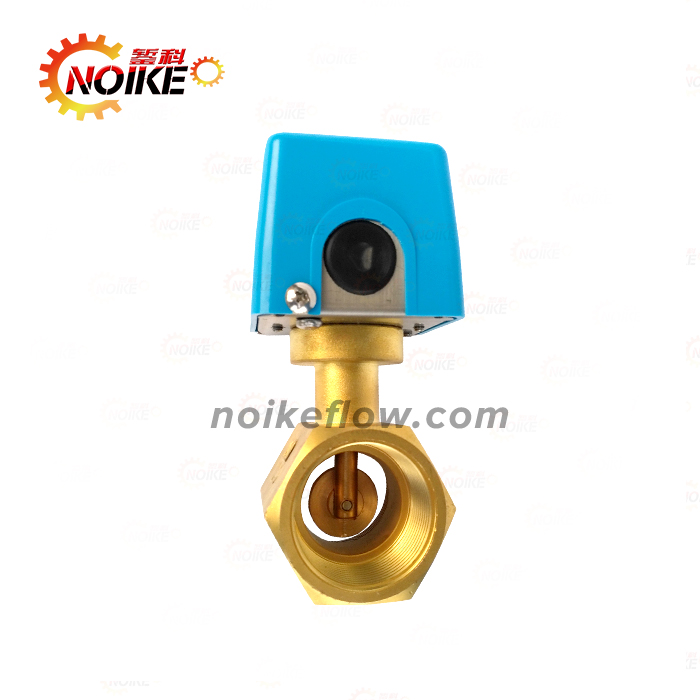

Mechanical flow switch, with built-in spring supported baffle,triggers the fretting switch when the flow reaches the prefabricated value. On-line installation, minimal pressure loss, good repeatability,anti-fouling ability, accurate switch setting through knobs. The mechanical part is completely isolated from the electronic part.
Product Application
Gas-liquid dual type, industrial automation/mechanical equipment/air compression industry/refrigeration and air conditioning suitable for pipe diameter ≤50mm
Technical Parameters
◇ scope setting: see the table below
◇ Repeatability: ±2.5 total range
◇ Wiring mode: terminal wiring
◇ output: normally open + normally closed (250VAC,3A)
◇ Withstand pressure: 16bar
◇ ambient temperature: -25... 85 °C
◇ Dielectric temperature: 90°C
◇ protection level: IP33
main body: stainless steel
process connections: brass
Connecting rod: brass
baffle: brass
◇shell: ABS
◇seal: NBR
IP67 Protective shell
