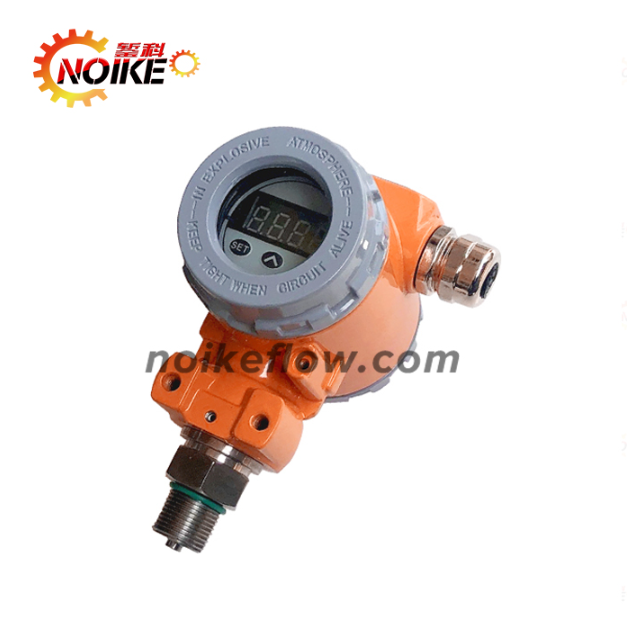

Professional English Translation of Ceramic Capacitive Pressure Transducer Specifications (Product-45)?

Technical Principle?

Utilizes ceramic capacitive technology where applied pressure increases capacitance value proportionally.

Key Features?

Overload Capacity?: High

Long-term Stability?: <0.1% FS/year

Interference Resistance?: Excellent

Accuracy Classes?: 0.1%, 0.2%, 0.5% selectable

Corrosion Resistance?: Ceramic measuring surface

Flush Diaphragm Option?: Suitable for viscous media

Field Adjustability?: Zero/span calibration via onboard interface

Display?: Integrated LED

Application Scope?

Media Compatibility?: Gas/liquid dual-phase

Industrial Applications?:

Hydraulic/pneumatic systems

Steel production

Mechanical equipment

Air compression

Refrigeration/AC systems

Lifting/conveying systems

Technical Parameters?

Parameter Specification

Measurement Range? Customizable (refer to selection table)

Linearity? ±0.2% or ±0.5% FS

Hysteresis? ≤±0.01% FS

Repeatability? ≤±0.01% FS

Temperature Effect? ≤±0.02% FS/K

Response Time? <5ms (10%-90% FS)

Power Supply? 10-36V DC

Load Resistance? ≤1kΩ

Current Consumption? Signal current (2-wire), 8mA (3-wire)

Ambient Temp.? -30°C to +85°C

Media Temp.? -30°C to +80°C

Storage Temp.? -30°C to +85°C

Ingress Protection? IP65

Housing Material? Die-cast aluminum

Selection Table?

(Note: Omitted per technical documentation standards - requires model-specific data)
