Professional English Translation of NY35 Series Digital Pressure Switch Specifications?

Product Overview?

Brand?: Shanghai Zanke Automation Co., Ltd.

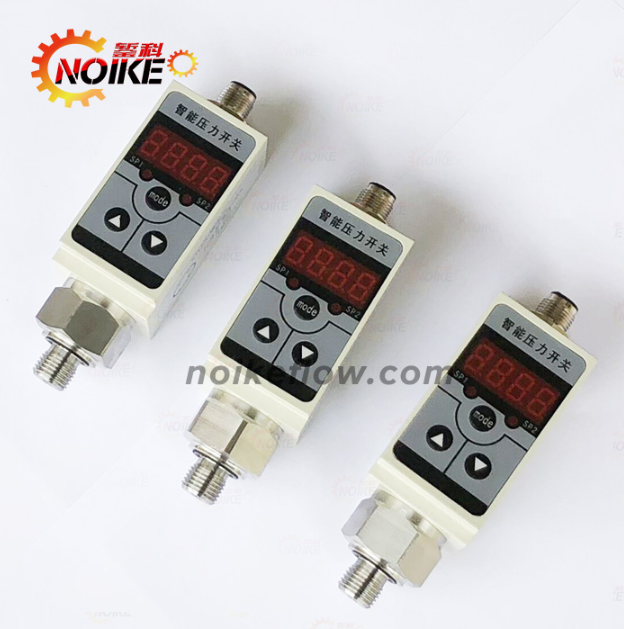

Model?: NY35 Series Intelligent Digital Pressure Switch

Technical Principle?

Utilizes ceramic or thin-film sensor technology to ensure high precision and durability. Features integrated LED display for real-time pressure monitoring and parameter configuration.

Key Specifications?

Parameter Specification

Measurement Range? -1 to 60 bar

Display Type? Digital LED (pressure values & switch status)

Output Options? - Switch output (for PLC integration)

- Analog output (4-20mA/0-10V)

Electrical Interface? M12 locking connector (IP65 rated)

Rotation Capability? 270° display housing rotation

Functional Characteristics?

Programmable Settings?

On-site menu configuration for:

Switch points

Analog output ranges

Display parameters

Non-volatile memory for parameter retention

Dual-Function Operation?

Simultaneous pressure switching and analog transmission capabilities

Mechanical Design?

Die-cast aluminum housing

Threaded process connection (material varies by model)

Application Scope?

Media Compatibility?: Gas/liquid dual-phase

Typical Use Cases?:

Hydraulic/pneumatic systems monitoring

Filter clog detection

Leakage monitoring in:

Industrial machinery

Process control systems

Tank level measurement

Installation Guidelines?

Pre-Installation Checks?

Verify packaging integrity and model conformity

Confirm power supply voltage matches rating

Safety Protocols?

Power must be disconnected during installation

Use torque wrench for threaded connections (max 50 N·m)

Troubleshooting?

For abnormal operation:

Discontinue use immediately

Contact certified technicians only
