Working Principle?

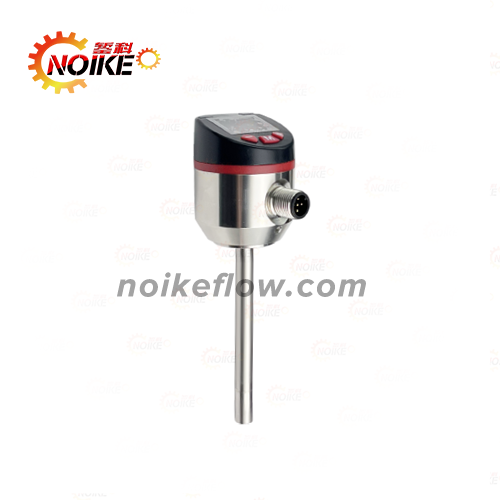

The device operates on a thermal measurement principle. Its sealed probe contains two resistors:

Heated resistor?: Serves as the sensing element.

Reference resistor?: Maintains ambient temperature.

When fluid flows, heat dissipation from the heated resistor alters its resistance value. The differential resistance between the two resistors determines the flow velocity.

Key Features?

Maintenance-free?: No moving parts.

Universal installation?: Single model accommodates multiple pipe diameters.

Low pressure loss?.

Integrated functions?:

Color LCD displays flow trend and switch status.

Built-in temperature measurement with alarm and remote monitoring capabilities.

Applications?

Media compatibility?: Liquids (water, oil), gases, and gas-liquid mixtures.

Typical uses?:

Low-flow alarms.

Pneumatic/hydraulic systems.

Coolant/lubricant flow monitoring.

Pump dry-run protection.

Technical Parameters?

Category Specifications

Flow Range? 0.01–2.0 m/s (water)

Temperature Range? 0–100°C (medium) / -20–80°C (ambient/storage)

Temperature Accuracy? ±1.5°C (when probe is immersed)

Output Signals? ?Temperature?: PNP/NPN/IO-link, 4–20mA, 1–5V

?Flow?: PNP/NPN/IO-link, 4–20mA, 1–5V

Power Supply? 24V DC ±20%

Current? Max. 200mA (PNP/NPN), Consumption <100mA

Display? 0.96" color LCD (flow/temperature)

Configuration? Button-operated settings

Pressure Rating? 100 bar

Response Time? 1–13s (typically 2s)

Electrical Protection? Reverse polarity, short-circuit, overload protection

IP Rating? IP67

Materials? ?Housing?: Stainless steel/engineering plastic

?Wetted parts?: 316L stainless steel/EPDM

Connector? M12 plug

Note?: Specifications are subject to customization based on application requirements.
